ComAp brand, by using the world’s latest technology, has gained a good rating for supplying high quality and reliable products, as well as valid international standards of DNV, AMPS, UL and ABS for its products. ComAp’s products in the field of diesel generator controllers and diesel engines include:
City-generator emergency power controllers / manual and remote starters (AMF and MRS GenSet Controllers)
The best and most complete option for emergency applications of city electricity and generator
Complete engine and generator protection, measurement of electrical and mechanical parameters
Communication with engines with ECU
Manual start control boards (MRS)
City electric boards – generator (AMF)
Controllers for applications with the driving power of diesel engines (Drive Power Controllers)
Advanced diesel engine controllers that provide powerful control facilities, monitoring and protection of all types of diesel pumps, diesel fans, diesel compressors and road construction and construction machinery.
Economical InteliDrive Nano series
InteliDrive Lite professional series with basic features
InteliDrive specialized series including ID-Industrial and ID-DCU models
Super advanced ID-Mobile series for road construction machinery
ID-Marine marine engines controller
ID-Lite FPC diesel fire pump controller
Diesel generator synchronous controllers (GenSet Synchronizing Controllers)
Advanced controllers for synchronizing a diesel generator with city electricity or several diesel generators together (up to 32 devices) and with city electricity if needed
InteliGen specialized series including IG-NT, BaseBox and IM-NT models equipped with internal PLC
Comprehensive InteliCompact series including IC-NT-SPtM, IC-NT-MiNT and MC-NT models
InteliSys specialized series for synchronous gas engines and CHP
Active and reactive load sharing between generators
Load management with the possibility of equalizing working hours and optimal operation of generators
It has the capabilities and working functions of AMF, Load sharing, Load shedding, Base load, Import/Export
Marine Controlle rs
Has certificates and valid marine standards ABS, DNV, BV, GL, KR, LRS, PRS, RMRS, RINA e
InteliGen Marin Complete controller for synchronizing a diesel generator with city electricity or several diesel generators together
InteliGen Gecon Marine Complete controller for synchronizing multiple generators together in applications independent of generator controller such as turbine
InteliDrive DCU Marine Advanced controller with high-level protection, control and monitoring facilities suitable for marine applications suitable for controlling and protecting ship propulsion engines
InteliVision IV5 ,IV8 ,IV12-Touch Display
7.5, 8 and 12 inch color TFT display
For Intelisys, InteliGen, InteliMains, InteliDrive controllers with powerful graphic and software features
Image resolution 600*800/ 240*320
Ability to communicate through RS232/RS485 and CAN Bus port
Working temperature between -20 and 70 degrees Celsius
IP65 environmental protection degree
Has marine standards and suitable for marine applications
Types of controllers:

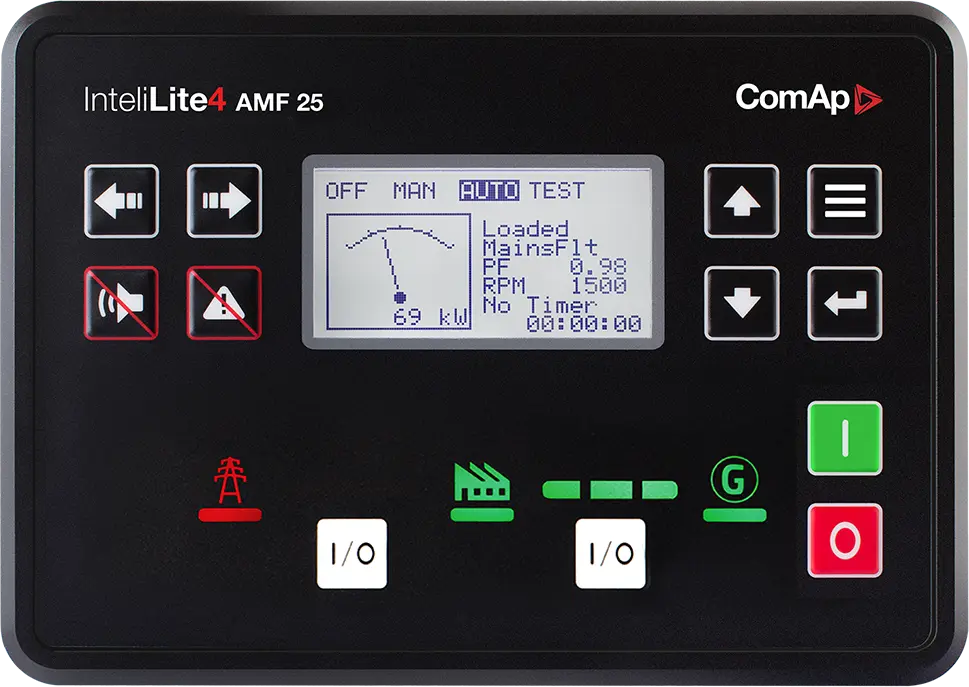

InteliLite NT AMF 25:
Comprehensive and complete controller for control, protection and monitoring of diesel generator with adjustable capability for emergency applications and manual and remote start.
Functionality in Standby or Prime mode
AirGate and WebSupervisor support using communication modules
Monitoring and control facilities through Internet, LAN, GSM Modem and industrial networks such as Modbus RTU/TCP
Complete measurement and protection of electrical parameters of the generator and city electricity and mechanical parameters of the engine
The possibility of monitoring fuel consumption and creating an alarm for excessive fuel consumption in one hour
Can be used as a backup controller in Dual function
It has a CAN Bus port (J1939) and supports a wide range of engines with ECU
Has a pickup input
Ability to send SMS in events and alarms by entering date and time
Measurement and display of city electricity voltage and frequency in three phases
Measuring and displaying voltage and frequency, current, power factor, kilowatt, kilovar, etc. of the generator in three phases
It has an internal RTC clock and a memory for recording events and events with date and time
7 digital inputs, 7 digital outputs and 3 analog inputs
It has two internal timers with the possibility of programming and periodic test program
Manual and automatic control of city power switch and generator
Support for different languages
(In the last table of the article, you can access the pdf containing the information of this product.)
InteliLite NT MRS11:
Controller for control, protection and monitoring of diesel generator with the ability to set for manual and remote start
Ability to connect additional and communication modules
Cloud-based monitoring and control by WebSupervisor and AirGate using communication modules
Monitoring and control facilities through Internet, LAN, GSM Modem and industrial networks such as Modbus RTU/TCP
Complete measurement and protection of electrical parameters of the generator and city electricity and mechanical parameters of the engine
Communication with the controller through RS232/ RS485/ USB/ Modem
Pickup speed sensor input and three analog inputs for oil pressure, water temperature, fuel level sensors
Ability to send SMS in events and alarms by entering date and time
Measuring and displaying voltage and frequency, current, power factor, kilowatt, kilovar, etc. of the generator in three phases
It has an internal RTC clock and a memory for recording events and events with date and time
It has two internal timers with the possibility of programming and periodic test program
Manual and automatic control of the generator key
Support for different languages
6 binary inputs, 6 binary outputs, 3 analog inputs
(In the last table of the article, you can access the pdf containing the information of this product.)
InteliNano NT Plus:
Diesel generator controller with suitable control and protection facilities, cost-effective with the ability to adjust for emergency applications and manual and remote start.
Three-phase sampling of city electricity voltage
Single-phase/two-phase sampling of generator voltage
Single-phase sampling of generator current
It has CAN Bus port (J1939) and supports engines with ECU
It has graphic LCD with good image resolution
It has a USB port to connect to a computer and adjust through the NanoEdit software
(In the last table of the article, you can access the pdf containing the information of this product.)
InteliLite 4 AMF 9:
Comprehensive and complete controller for control, protection and monitoring of diesel generator with the ability to adjust for emergency applications and manual and remote start.
Functionality in Standby or Prime mode
It has Remote Display capability
The possibility of setting 3 different levels of settings for generator voltages and switching between these 3 levels by means of binary input
It has built-in PLC, supports PLC editor and monitoring with InteliConfig software
Two 10 amp relay outputs for start and fuel
Event recording memory up to 350 events
Ability to increase up to 16 binary inputs and outputs
Complete measurement and protection of electrical parameters of the generator and city electricity and mechanical parameters of the engine
Measurement and display of city electricity voltage and frequency in three phases
Measurement and display of generator voltage, frequency, power factor, kilowatt in three phases
Direct connection with engines with ECU
Easy installation and setup
A wide range of communication capabilities, including: Communication through RS232, RS485, CAN ports
Has a USB port by default
Internet access using Ethernet, GPRS and G4
Modbus and SNMP protocol support
Cloud-based monitoring and control by Web Supervisor
Ability to send emails and SMS in different languages
Ability to locate and track through Web Supervisor
Ability to cut load shedding and dummy load
Has 3 password layers
Has comprehensive diesel generator protections
It has multipurpose flexible timers
True RMS measurement
It has 8 digital outputs, 8 + 1 digital input and 3 analog inputs
The possibility of activating outputs using controller inputs
Can be used in temperatures below zero (LT model)
(In the last table of the article, you can access the pdf containing the information of this product.)
InteliLite MRS 16:
The ability to adjust up close and manually, or online and remotely using devices such as computers, tablets, or smartphones.
It has ports to connect to input and output devices and various communication options
Easy to install, configure and use
Support 5 different languages to make settings
It has 3 different security layers
Has 3 different sets of alternate configurations
Having the ability to communicate widely such as:
Ability to connect via RS232, RS485, CAN and USB
The ability to connect to the Internet through Ethernet, GPRS and 4G
Support for SNMP and Modbus protocols
Support for built-in PLCs using LiteEdit’s built-in PLC editor and monitor
It has an active SMS and email system with support for different languages
It has an SNMP port
It has an option to enter and exit additional 16-bit strings
Has operational memory to store 350 different events
It has comprehensive protection measures for generator sets
It has multipurpose flexible timers
True RMS measurement
(In the last table of the article, you can access the pdf containing the information of this product.)
Inteligen NT:
Displaying diesel generator parameters and errors
Defining the access of different people to change and adjust diesel generator parameters
Possibility of automatic switching between city electricity and generator
Support RS232 protocol serial communication
Exclusive program for mobile and computer use
It has binary digital input and output
It has an analog input for connecting sensors
(In the last table of the article, you can access the pdf containing the information of this product.)
InteliLite NT MRS 19:
For use in emergency power scenarios
It has 7 binary outputs, 7 inputs and 3 outputs
It has CAN expansion module and TRUE RMS measurement capability
Has the ability to log and has the ability to change the language
(In the last table of the article, you can access the pdf containing the information of this product.)
InteliLite NT MRS 4:
Compact generator controller for single generator sets with easy setup
Manual and Remote Start (MRS) applications
Monitoring and protection
Outstanding EFI engine support with plain text diagnostic messages via J1939
Runtime event reporting and performance
Multiple languages (changeable by the user) in the controller, even more in the installation set
Functionality of plugin modules
Automatic SMS on alarm or event and genetic control on SMS
GCB automatic control
D+ preexcitation terminal
True RMS measurement
3 phase power measurement
3 adjustable analog inputs, 4 binary inputs and 4 binary outputs
ModBus support
Optional version with USB port
(In the last table of the article, you can access the pdf containing the information of this product.)
InteliLite NT MRS 3:
Compact generator controller for a single generator set
Manual and Remote Start (MRS) applications
Easy to setup
Monitoring and protection of the vast genetic pool
Runtime event reporting and performance
Multiple languages (changeable by the user) in the controller, even more in the installation set
Functionality of plugin modules
Automatic SMS on alarm or event and genetic control on SMS
GCB automatic control
D+ preexcitation terminal
True RMS measurement
3 phase power measurement
3 configurable analog inputs, 4 binary inputs, 4 binary outputs
ModBus support
Optional version with integrated USB port
(In the last table of the article, you can access the pdf containing the information of this product.)
InteliCompact NT:
Support engines with ECU and direct connection with EMF engines
Excellent configuration to adapt to customer needs and remote monitoring capability
Multiple communication options for easy remote monitoring of diesel generator sets
Built on the general functions of general PLCs
Ability to record diesel generator working history in long intervals
Ability to work with wireless internet (Wi-Fi)
Simple parallelization (easy wiring, installation and settings)
Ability to measure generator values: A, kW, kVar, V, hz and actual power value
Ability to measure bass parameters: Voltage (3 phase, actual value), hz
Automatic synchronization and load control through governor or ECU
AVR control (voltage and PF control)
Active and reactive digital load sharing
Advanced energy management functions
Start/ step depending on the amount of load
Load demand exchange
Balancing the working hours of generators
A wide range of communication interfaces including:
RS485, RS232, USB, Modbus, GSM/ analog modem, GPRS, Ethernet board comp.
Support for electronically controlled engines
Ability to record events up to 200 events
(In the last table of the article, you can access the pdf containing the information of this product.)
InteliCompact NT MINT:
9 digital inputs, 8 digital outputs and 3 analog inputs
Power supply range: 8-36 V
Support engines with ECU and direct connection with EMF engines
Excellent configuration to adapt to customer needs and remote monitoring capability
Multiple communication options for easy remote monitoring of diesel generator sets
Built on the general functions of general PLCs
Ability to record diesel generator working history in long intervals
Ability to work with wireless internet (Wi-Fi)
Synchronous and load sharing capability with 32 diesel generators
Simple parallelization and synchronization (easy wiring, installation and configuration)
Simple parallelization (easy wiring, installation and settings)
Ability to measure generator values: A, kW, kVar, V
Ability to measure bass parameters: Voltage (3 phase, actual value), hz
Automatic synchronization and load control through governor or ECU
AVR control (voltage and PF control)
Active and reactive digital load sharing
Advanced energy management functions
Start/ step depending on the amount of load
Load demand exchange
Balancing the working hours of generators
A wide range of communication interfaces including:
RS485, RS232, USB, Modbus, GSM/ analog modem, GPRS, Ethernet board comp.
Support for electronically controlled engines (ECU with J1939, Modbus)
Ability to record events up to 200 events
(In the last table of the article, you can access the pdf containing the information of this product.)
InteliGen NTC BaseBox:
12 digital inputs, 12 digital outputs and 3 analog inputs
Power supply range: 8-36 V
Comprehensive parallel generator set controller
Parallel operation of up to 32 generator sets
High level control for complex systems
CHP and gas engine controller
Load sharing and VAR sharing via CAN
Common virtual inputs and outputs via CAN
Support for a wide range of applications
A set of single or multiple generators parallel to the power grid
Automatic backup function, multi-island operation
Advanced power management functionality
Adjustable load control parallel to the power grid
Wide range of ECU or ecm support
Extensive communication capabilities and built-in web server
Full Modbus Slave support
GPS and AirGate support and etc.
Timer, built-in PLC, power values and more
Compatible with InteliVision ComAp displays
Send active email and SMS
Extensive built-in protection functions
Standard protections
User adjustable protection
(In the last table of the article, you can access the pdf containing the information of this product.)
InteliGen NT GeCon:
Generator controller for single or multiple generator sets operating in standby or parallel mode.
Many communication options – easy remote monitoring and servicing
Generator performance report for easy problem tracking
Synchronization and automatic control
AMF, base load, import/ export, peak shaving, voltage control and PF (AVR) functions
Generator measurement, network measurement
Adjustable inputs and outputs for different customer needs
Controller redundancy
event-driven history (up to 500 records) with a list of stored values selectable by the customer; RTC. Statistical values
PLC programmable integrated functions
Fixed and adjustable integrated protection
(In the last table of the article, you can access the pdf containing the information of this product.)
InteliLite 4 MRS 16:
The ability to display the parameters and errors of the diesel generator, as well as to adjust the different parts of the device protection in different working conditions
The possibility of connecting to a computer through a serial port and supporting the RS232 protocol for programming or connecting to user interfaces such as HMI
Displaying diesel generator parameters and errors
Defining the access of different people to change and adjust diesel generator parameters
Possibility of automatic switching between city electricity and generator
Support RS232 protocol serial communication
Exclusive program for mobile and computer use
It has binary digital input and output
It has an analog input for connecting sensors
CAN system support
(In the last table of the article, you can access the pdf containing the information of this product.)
| Specification | Type |
|---|---|
| Download | InteliCompact NT |
| Download | InteliCompact NT MINT |
| Download | InteliGen4 200 |
| Download | InteliGen NT |
| Download | InteliGen NT GeCon |
| Download | InteliGen NTC BaseBox |
| Download | Intelilite 9 |
| Download | InteliLite 4 AMF 9 |
| Download | InteliLite 4 MRS 16 |
| Download | InteliLite MRS 16 |
| Download | InteliLite AMF8 |
| Download | InteliLite NT AMF 25 |
| https://en.savaenergy.org/wp-content/uploads/2024/05/InteliLite-NT-AMF20.25.pdf | InteliLite NT AMF20/25 |
| Download | InteliLite NT MRS 4 |
| Download | InteliLite NT MRS10 |
| Download | InteliLite NT MRS 11 |
| Download | InteliLite NT MRS 19 |
| Download | InteliLite NT MR23 |
| Download | InteliNano NT Plus |
