The way the AVR of the Stamford generator works is that when the diesel generator starts working, there is a small magnetic hysteresis on the rotor of the generator, which when the generator is rotated by its driver, a small voltage appears at the output, which is about 6 to 40 volts, which varies depending on the type of generator. AVR takes this voltage from the output and applies it to excite the generator.
As a result, as the excitation voltage increases, the output of the generator increases again. AVR repeats this process until the generator voltage reaches the rated value; Now, if the output voltage increases for any reason, the AVR generator immediately reduces the excitation power supply. If the generator output voltage drops, the AVR will increase the excitation supply.

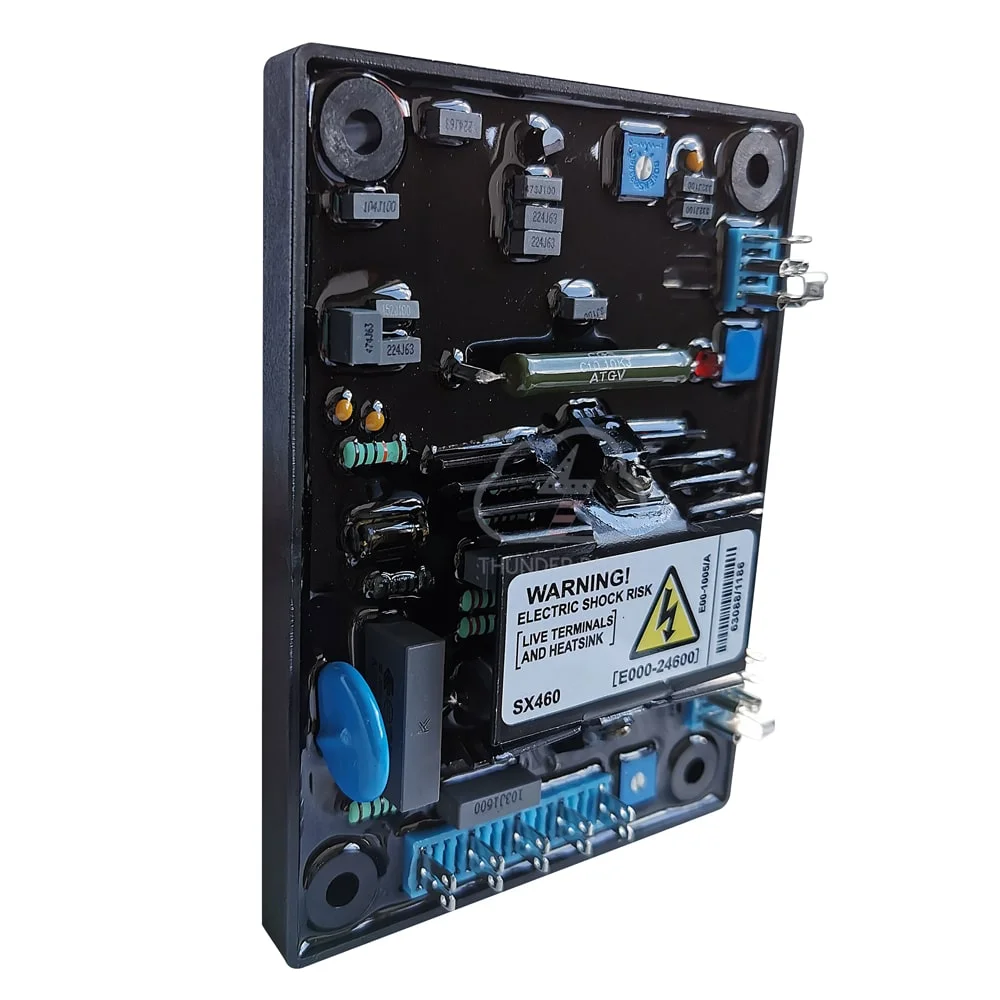

AVR SX460 Stamford England is one of the most prominent regulators in Stamford and other generators. The use of this board is produced in 10 to 250 kVa generators without coal in two types of 5 and 20 amps due to its high quality and high life and performance. This board is available in the market in two main qualities, made in England and the main design material made in China.
Click on the link below to see the details and information of this product.
For advice, to get more information and to buy the product, contact us through the contact portal on the contact page or our other social networks.
